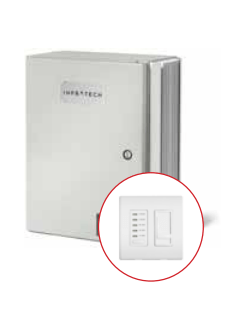

Achieve the ultimate in precision heating control with the Infratech Universal and Home Management System Control Panels. These high-capacity, multi-zone panels allow for operation of multiple heaters in different zones, providing seamless integration and complete dimming control from 0% to 100% heat intensity.

Universal Control Panels (30-407X SKUs) include the necessary dimmer/timer components and are compatible with voice control systems (Alexa, Siri, Google Home) via Wi-Fi/Bluetooth. Home Management System Panels (30-406X SKUs) are designed for top-selling systems like Lutron, Crestron, and Control4, offering 0-10V DC control for integrating heat settings into off-site automation and scheduling.

Panels are scalable from 1 Relay (up to 6,000 Watts) up to 6 Relays (up to 36,000 Watts).

Available Options

• Relay Control: 1 to 6 Relays (Controls 1 to 6 Zones)

Key Features

• Multi-Zone Dimming: Allows continuous adjustment of intensity (0–100%) for heaters in multiple zones.
• High Capacity: Each relay can switch a maximum of 6,000 Watts (2 heaters at 2,000W or 4,000W).
• Universal Controls: Built-in dimmer and timer with Wi-Fi/Bluetooth for voice and app control.
• Home Management System: Provides 0-10V DC control for integration with major home automation systems.
• Scalable: Supports systems up to 36,000 Watts total.

Specifications

• Brand: Infratech
• Product: Universal/Home Management Control Panel
• Series: 30-4000
• Control: 0-100% Dimming / On-Off
• Max Watts per Relay: 6,000 Watts
• Relay Box: Sub-panel installation

Note: Installation requires a separate 120V Universal Slide Dimmer (for 30-407X) and must be connected to the main electrical service panel. Contact Infratech for Custom Control Panel (30-4070/30-4060) pricing.
